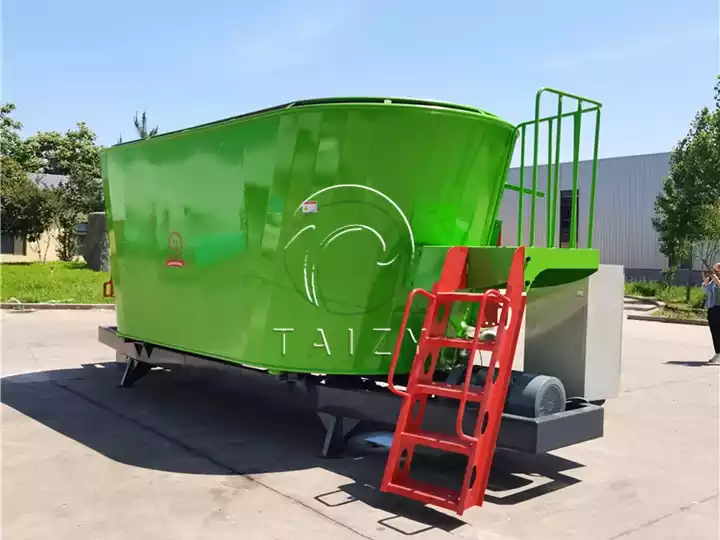

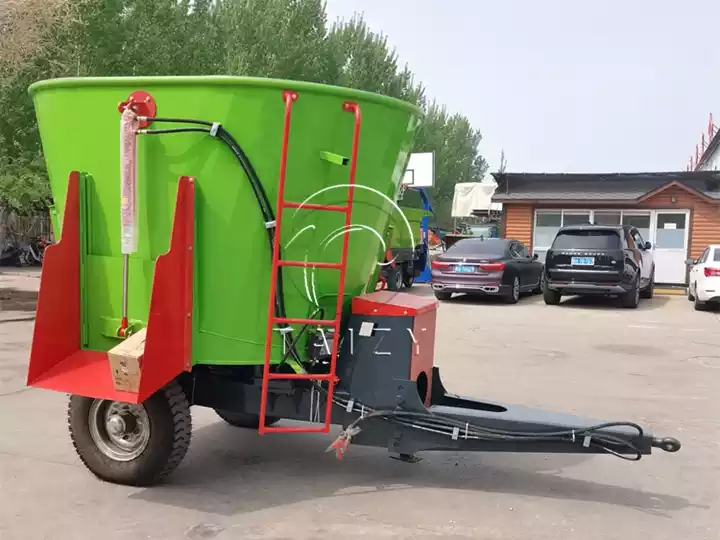

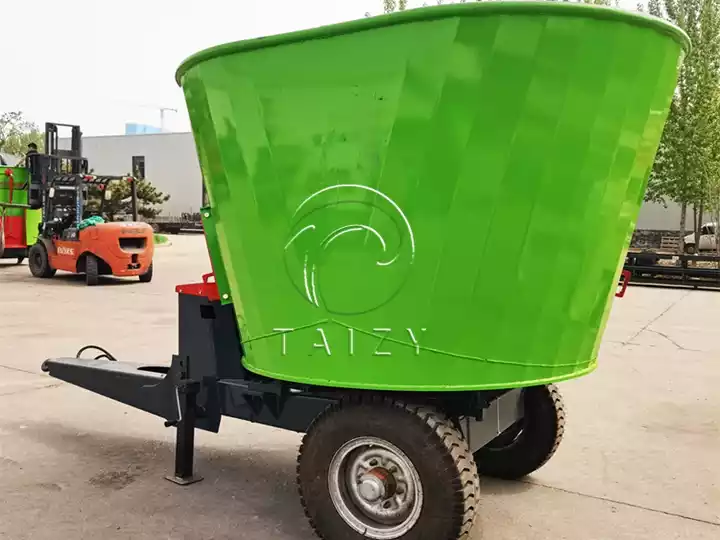

The TMR vertical feed mixer is used for the preparation of total mixed rations on large-scale dairy farms. The vertical auger mixing system thoroughly blends silage, hay, straw, concentrates, and mineral supplements in the correct proportions to ensure …
The TMR vertical feed mixer is used for the preparation of total mixed rations on large-scale dairy farms. The vertical auger mixing system thoroughly blends silage, hay, straw, concentrates, and mineral supplements in the correct proportions to ensure nutritionally balanced feeding.
The equipment is available in capacities ranging from 3 to 36 m³. The common 7 m³ model (9JGL-7) meets the daily requirements of medium-sized cattle farms, typically completing uniform mixing within 5 to 15 minutes.
With a production capacity of approximately 3,000–4,000 kg/h and a power system of 70 horsepower or more, it is suitable for livestock farms raising cattle, sheep, and other animals.
The vertical feed mixer features wear-resistant alloy blades and a reinforced steel plate structure, combined with a weighing system and a high-strength gearbox design. This effectively improves feed uniformity, reduces selective feeding and enhances feed utilisation, making it an essential piece of equipment for modern, standardised livestock farms.
Working video of the TMR silage vertical feed mixer machine
This equipment is widely used on dairy farms, beef cattle farms, sheep farms and large-scale livestock breeding bases.
It can be used for the uniform mixing and blending of silage maize, alfalfa, hay, straw and concentrated feed. It helps establish a scientific TMR feeding system and improves overall farming efficiency.
| Item | Specification | Item | Specification |
| Model | 9JGL-7 | Mixing Volume | 7 m³ |
| Structure | Vertical Traction Type | Power Source | Tractor PTO |
| Required Power | ≥70 HP | Gearbox Brand | Jiangling Reducer |
| Main Shaft Speed | 23 r/min | Main Shaft Qty | 1 |
| Blade Qty | 7 large + 6 small | Blade Material | Cr12MoV |
| Machine Size | 3700 × 2200 × 2300 mm | Upper Tank Size | 2700 × 2100 mm |
| Steel Thickness | Side 8 mm / Bottom 20 mm | Output Capacity | 3000–4000 kg/h |
| Control System | Weighing System | Discharge Outlet | 1 |
| Feeding Method | Top Loading | Operation Type | Traction Type |
Technical parameters of the 7 m³ vertical feed mixer

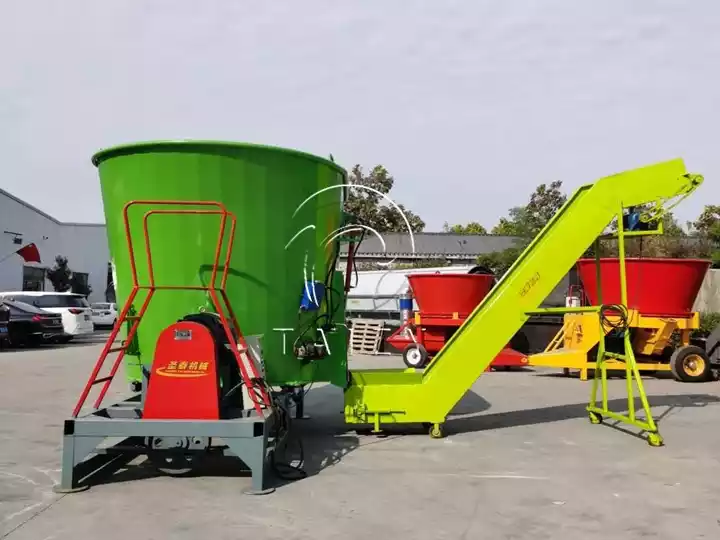

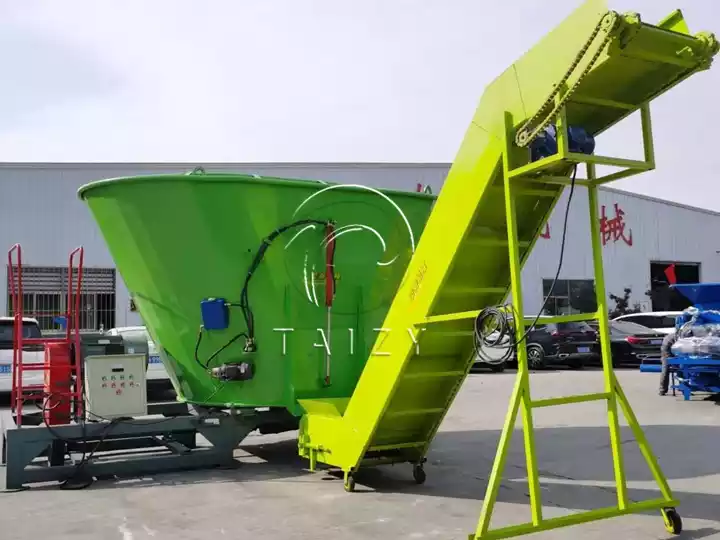

Once raw materials enter the mixing chamber via the loading port, they are lifted vertically and cut by the vertical spiral blade shaft, whilst the bottom blades perform secondary grinding. This ensures that different raw materials are continuously turned and mixed within the chamber.
In conjunction with a weighing system that precisely controls the mixing ratio, the mixture is ultimately discharged evenly through the outlet, enabling the feeding of uniformly mixed complete rations.
When selecting a TMR mixer, the decision should be based on the scale of the operation, daily feed intake, and site conditions. It is also important to consider the power source (electric motor, tractor, or diesel) and whether a weighing system and automated functions are required.

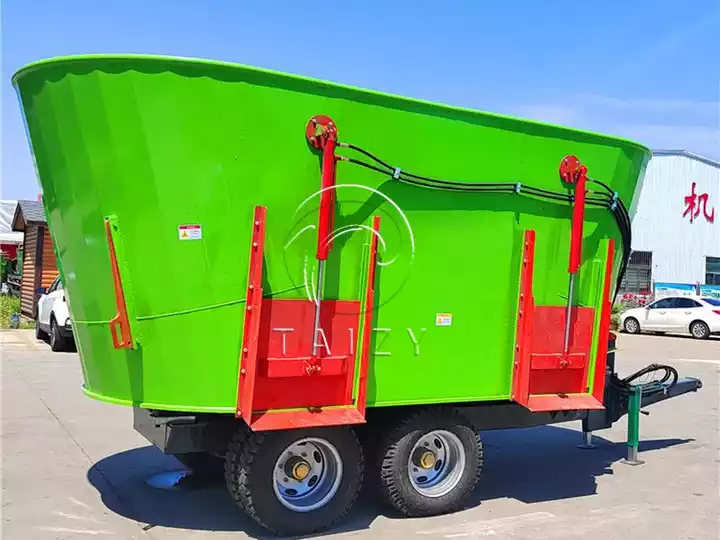

Small-scale farms may opt for models with a capacity of 3–7 m³; medium-sized farms are recommended to choose 7–15 m³ models. Whilst large-scale operations are best suited to equipment with a capacity of 20 m³ or more (as shown in the figure below).
We specialise in the research, development and manufacture of livestock feed equipment. Our equipment is constructed from high-strength, industrial-grade materials and features proven structural designs, ensuring long-term, reliable operation.
We also supply horizontal type TMR feed mixers and forage feed spreading machines to meet the needs of farms of all sizes. Please feel free to contact us for detailed solutions and quotations to help you create a more efficient, modern feeding system.
