Chicken hatching machines are called Broiler incubators. This kind of chicken egg incubator machine uses imitation biological principles and automatic control technology to provide suitable conditions for egg embryo development to obtain a large number of high-quality chicks.
Chicken hatching
Type and function of a chicken brooder
We provide different types of incubators, including mini incubators. So our chicken egg incubator is suitable for industrialized and large-scale incubation production and family incubation. The smallest incubator can hold 16 eggs, and the largest incubator can hold 30,000 eggs.
So you can choose a suitable incubator according to your needs. Besides, our company sells different function egg incubators, such as egg incubators with three functions and egg incubators with one function.

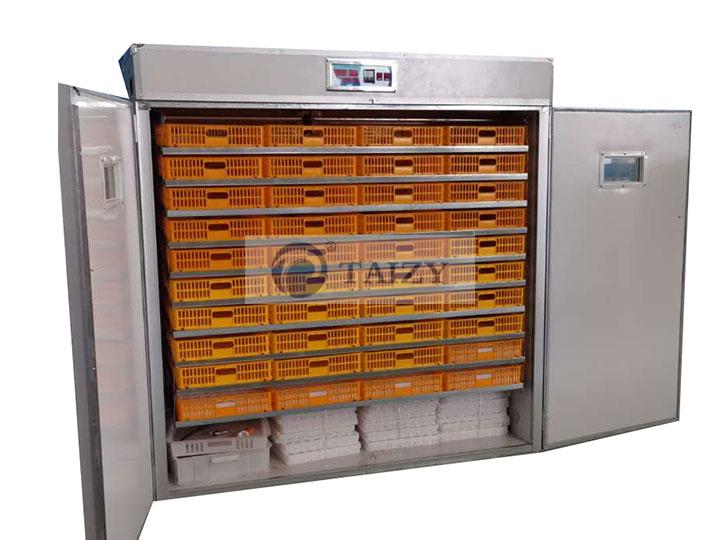

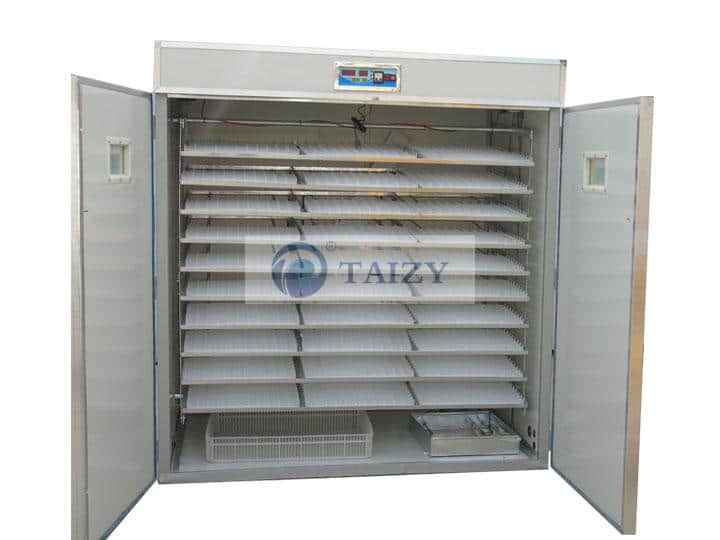

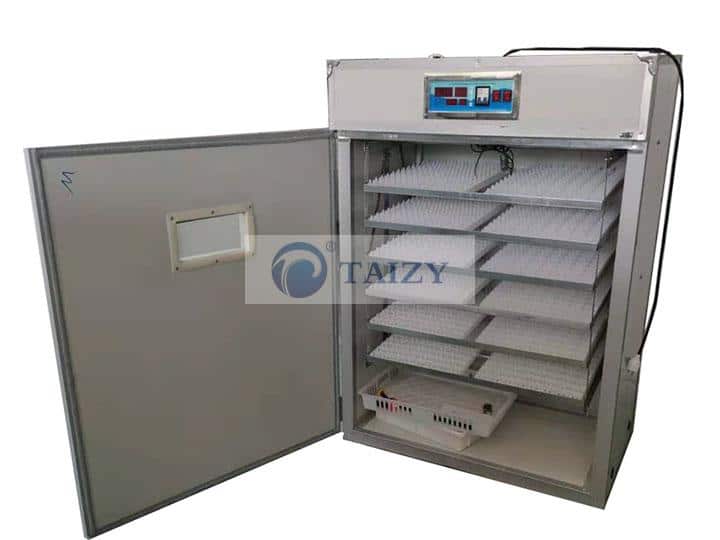

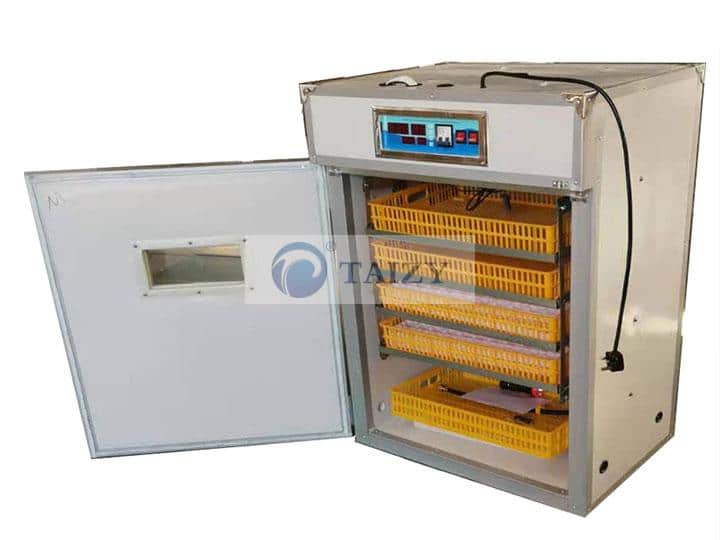

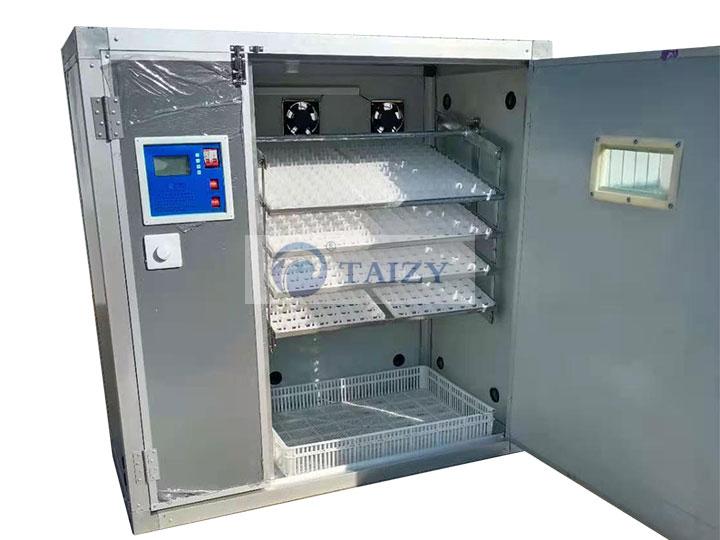

352-incubator with one function1056-incubator with one function5280-incubator-with-one-functions352-incubator with three functions1056-incubator with three functions5280-incubator with three functions
Difference between a three functions eggs incubator and an eggs incubator

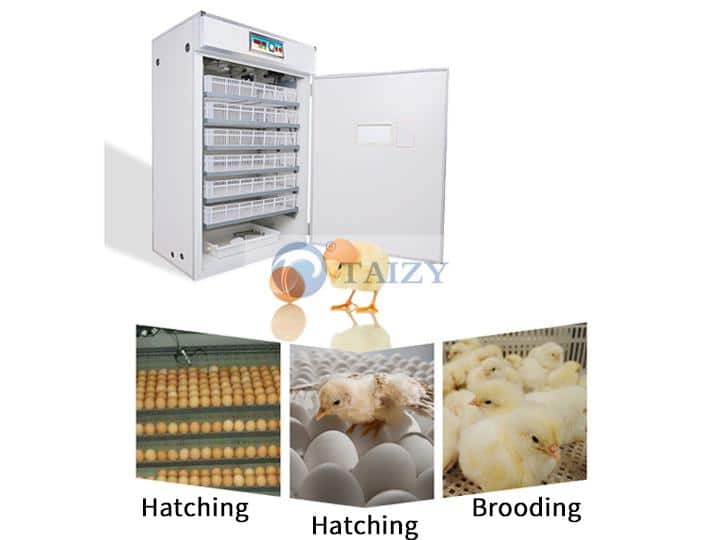

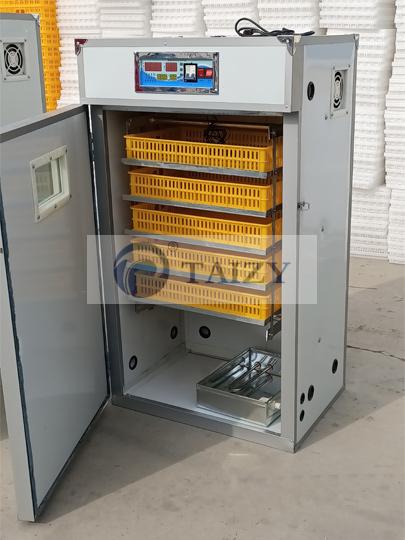

The working principle of these two machines is the same. However, the chicken egg incubator with three functions has more functions. The machine can incubate, hatch, and brood.

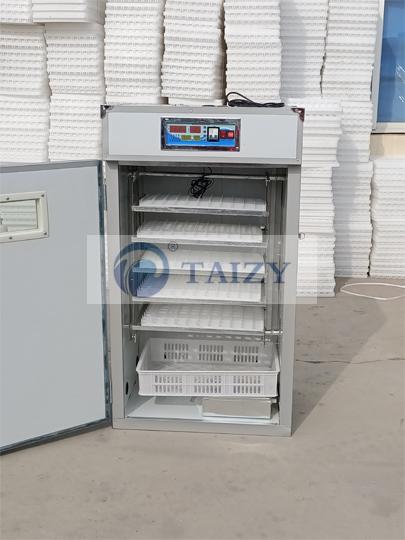

While, the chicken egg incubator with one function can only be hatched, which means that the chick must be taken out of the machine before the chick comes out of the shell. So you can choose one of the two types of machines according to your needs.

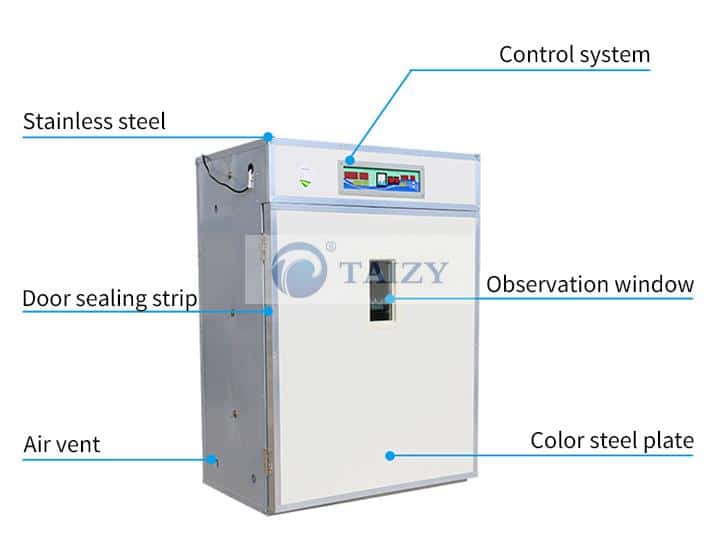

What are the inner accessories of the incubator machine?

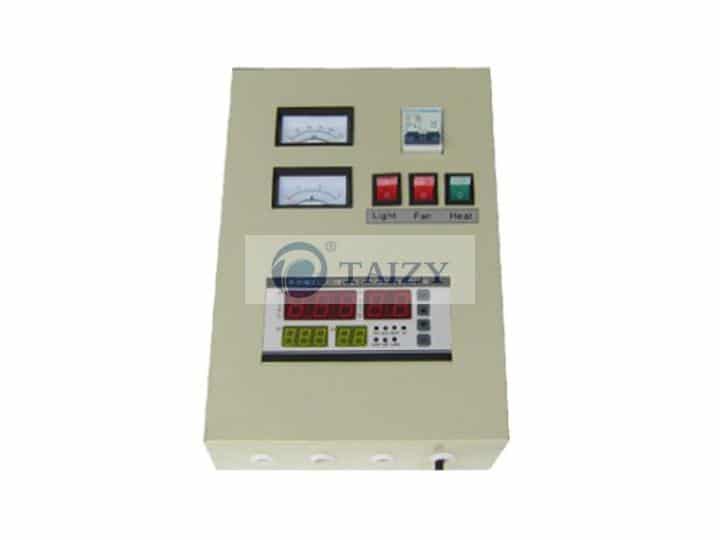

automatic microcomputer controller
It is a fully automatic microcomputer controller. The controller is simple to operate. Besides, its accuracy is high.

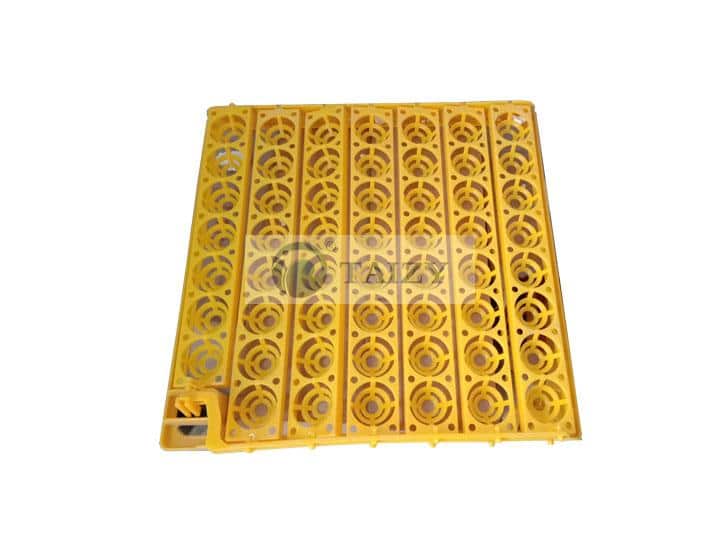

Egg tray
You should put hatching eggs in the tray.

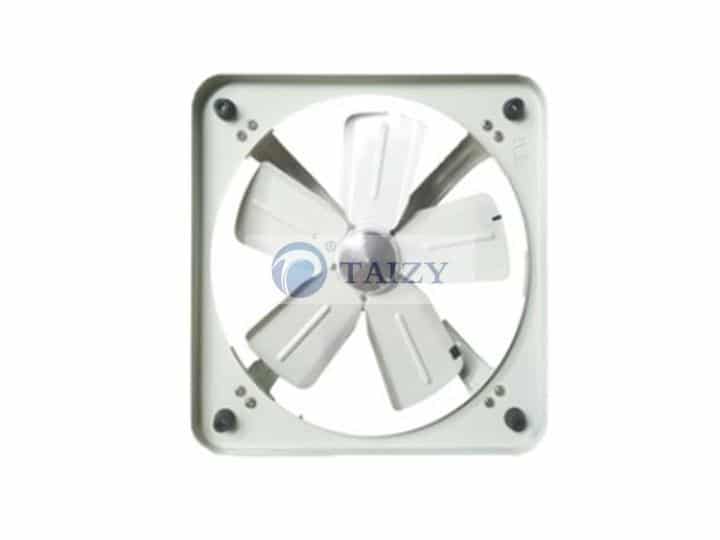

Circulatory system
The system exchanges the air between the inside of the incubator and the outside of the machine. So the incubation rate can be ensured.

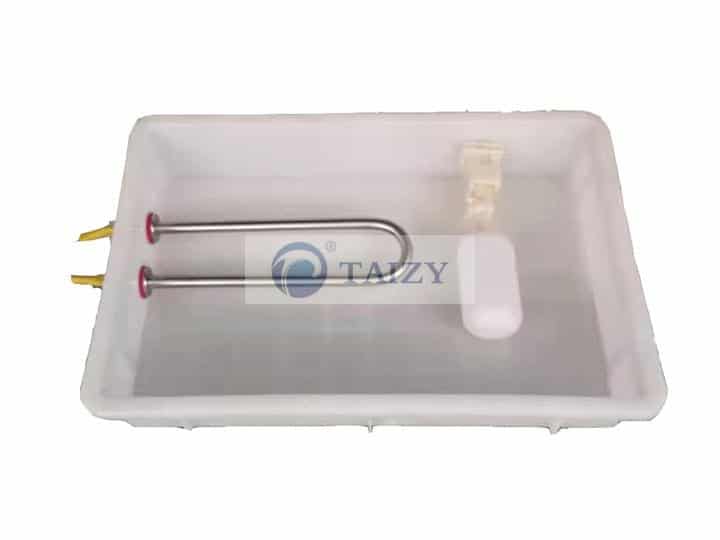

Humidification system
The humidification system humidifies the incubation environment.

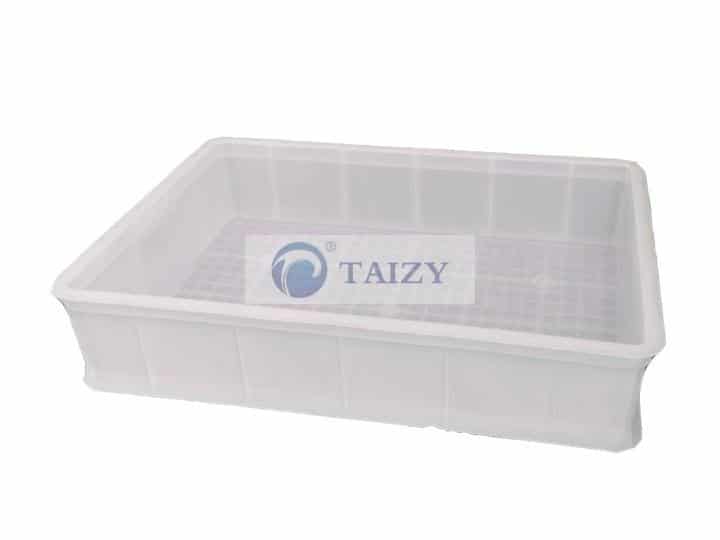

Water plate
The water in the tray is used for humidification.
What are the advantages of chicken hatching machines?
Compared with artificial incubation methods, chicken egg incubator machines have the following advantages.
First, do better in output and output ratio.
Second, an egg incubator is less affected by time, temperature, and humidity, because it can simulate the natural conditions required for incubating chicks.
Third, high hatchability.
Fourth, it is easy to use and can be operated by looking at the manual.
Fifth, wide applicability, whether you are a chicken farm or for personal use.
Because of these, it can be said that chicken hatching machines are one of the important pieces of equipment for the development of modern chicken production. Our chicken egg incubator is a fully automatic incubator machine with a simple and clear workflow and easy operation.
Can I hatch other eggs with the chicken hatching machines?
Our chicken hatching machines can not only hatch chicken eggs but also duck eggs, goose eggs, quail eggs, etc.
chicken hatching machines can hatch chicken eggs, duck eggs, goose eggs, quail eggs, etc.
How to use a chicken egg incubator?
Steps:
Firstly, check whether the internal components of the body are complete.
Secondly, attach the water pipe to the tap water pipe to facilitate the automatic water supply of the chicken egg incubator. Be sure to check afterward to make sure there is no dripping. Then check to make sure there is no water leak.
Thirdly, the rated voltage of the incubator is 220V. Once the voltage is higher than 220V, it will burn the humidifying tube; While if the voltage is lower than 220V, it will not start normally. So you should use a voltage stabilizer.
Fourthly, try it out before starting the incubation work to ensure that all functions of the incubator are normal.
Lastly, put the hatching eggs into chicken hatching machines. Then set the temperature, humidity, and time required for incubating the hatching egg through the microcomputer control panel.
How to improve the hatching rate of chicken hatching machines?
Selection of breeding eggs: Generally, the hatching rate of fresh eggs is the highest in 5-7 days. Sharpen eggs, steel-preserved eggs, odd-shaped eggs, and breeding eggs that are too large, too small, or have dark spots cannot be used for incubation.
Sterilization of breeding eggs. You can choose ultraviolet rays and bromogeramine which is a kind of medicine, to sterilize breeding eggs.
Indoor temperature and humidity: The room should be kept at 20-25 degrees Celsius, and the relative humidity should be kept at 50-60%.
Loading the eggs into the hatching: Place the eggs with the big end up and the small end down.
Use of vents: When using chicken hatching machines for the first time, all parts of the incubator should be closed tightly. All vents on the incubator should be closed. Seven days after the start of incubation, it should be gradually opened depending on the weather.
Incubation time and parameter table of chicken egg incubator
The whole incubation process can be divided into three stages, namely incubation, hatching, and brooding.
First stage: the first 18 days are called incubation.
Second stage: after 18 days, the chicks gradually began to peck at the eggshells.
Third stage: on days 18-21, the chicks came out one after another.
Generally, it takes 21 days. While, because of the difference in the thickness of the eggshell, some chicks come out early and some come out late. So don’t worry if you have the same situation.
Days of incubation
1-6 days
7-12 days
13-18 days
19 days and after
Temperature parameter
38.0℃
37.8℃
37.6℃
37.2℃
Humidity parameter
60%RH
55%RH
60%RH
70%RH
Egg turning parameter
2.0(15)
2.0(15)
2.0(15)
2.0(15)
incubation conditions
Machine parameters
Types of machine
Number of chicken eggs
Number of duck eggs
Number of goose eggs
Number of pigeon eggs
Power/w
Overall size/mm
Small incubator
88
63
32
112
100
750*600*800
176
126
64
224
150
750*600*900
264
189
96
336
150
750*600*1000
352
252
128
448
150
750*600*1100
440
315
160
576
150
750*600*1200
528
378
192
672
150
750*600*1300
880
630
320
1120
200
1000*700*1200
1056
756
384
1344
300
1000*700*1300
Medium-sized incubator
1232
882
448
1568
300
1000*700*1400
1584
1134
567
2016
300
1000*700*1600
1848
1323
672
2352
500
1400*850*1280
2112
1512
768
2688
500
1400*850*1380
2640
1890
960
3360
500
1400*850*1580
3168
2268
1152
4032
500
1260*1100*1650
3520
2520
1280
4480
800
1260*1100*1750
4224
3024
1563
5276
800
1760*1100*1500
big incubator
5280
3780
1920
6720
900
1760*1100*1700
6336
4536
2304
8064
900
1760*1100*2000
8448
6048
3072
10752
1000
1650*2000*2000
9856
7056
3584
12544
1000
1650*2000*2150
12672
9072
4608
16128
1000
1650*2000*2350
14784
10584
5376
18816
1400
2270*2000*2000
16896
12096
6144
21504
1400
2270*2000*2150
chicken egg incubator machine technical data
FAQ about chicken egg incubator
Can we hatch eggs at home?
Yes, of course. We provide different types of chicken egg incubators, including small egg incubators. With the help of the incubator, you will surely hatch the chicks successfully. It must be fun to watch the chicks turn from eggs into chicks in 21 days.
How much does an incubator cost?
We have many models of incubators. And the price of each model of the machine is different. So if you want to know more information, please contact us.
How many times do you turn an egg in a chicken egg incubator?
The incubator is set to turn the eggs every 1.5 hours, and our incubator runs automatically without an operator. So you just need to set it up.
How soon can you take a chick out of the incubator?
Generally speaking, the newly hatched chicks can stay in the incubator for 24-48 hours. To improve the survival rate of the chicks, you can take the chicks to the brooding box when chicks are dry and fluffy.
Are the hatching time and hatching conditions of different poultry eggs the same?
The hatching time and hatching conditions of different poultry
eggs are different. So the hatching time and conditions of duck eggs, goose eggs, pigeon eggs, and quail eggs are different.
What are your payment methods?
Trade Assurance, T/T, Western Union, Money Gram, L/C, Pay Pal, Cash, etc.
How many days we can get the chicken egg incubator machine?
If we have chicken hatching machines in the warehouse, we will ship them as soon as possible. But if you need customization, it will take longer.
